Features

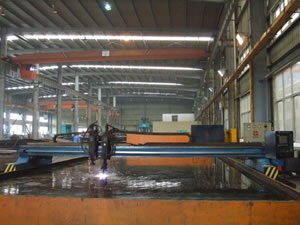

1.This CNC plasma cutter has a water level of cutting platform. Please charge the water bed by opening the fan blower through gas valve before cutting, then the water level will rise rapidly.
2.This CNC underwater plasma cutting machine possesses the functions of CNC plasma, CNC flame and strip flame cutting. The cutting thickness is not limited to thick plate, medium and thin plates are also available.
3.When the water submerges the steel plate, the gas valve will be closed and the water level will stop.
4.This plasma cutter can be used for cutting mild steel and stainless steel, and it is not suitable for cutting aluminum and magnesium.
5.When this CNC plasma cutting machine is running, the water will absorb metallic dust and arc completely
6.The CNC plasma cutter has little distortion, but the manufacturing cost of the water bed is relative higher.
Components
1.The CNC system can choose from American Hypertherm, American Bruney or Beijing Stuart
2.This CNC underwater plasma cutting machine can be equipped with different kinds of plasma supply, such as American Hypertherm, American Thermadyne, Germany Kjellberg or domestic plasma power.
3.For the key parts, we use the France Schneider’s servo drive system, reducer of Germany NEUGART, towline from Germany IGUS, and SIEMENS or ABB’s elements.
4.This CNC plasma cutter can be configured with two types guide rails, 24kg/m and 38kg/m. It also can be selected according to the requirement of the customers.
Parameters of CNC Underwater Plasma Cutting Machine
|
Model
|
QSH30-40
|
QSH30-80II
|
|
Drive Way
|
Single Drive, 24KG/M rail
|
Double Drive, 38KG/M rail
|
|
Rail Span (m)
|
3-4
|
3-8
|
|
Valid Cutting Width (m)
|
2.2-3.2
|
2.2-7.2
|
|
Torch Lift Stroke (mm)
|
170
|
|
Rail Length of Plasma Cutter
|
According to the Requirement of Customer
|
|
Flame Ccutting Speed (mm/min)
|
50-1000 (Setting as per Cutting Technology)
|
|
Plasma Cutting Speed (mm/min)
|
350-6000
|
|
Fast Return Speed (mm/min)
|
6000
|
|
Flame Cutting Thickness (mm)
|
6-100 ( Single Torch), Piercing Thickness≤80
|
|
Plasma Cutting Thickness
|
Recommend Suitable Plasma Source According to the Requirement of Customer
|
|
Flame Cutting Material
|
MS
|
|
Plasma Cutting Material
|
MS, Aluminum, SS
|
|
Input Power of Plasma Cutter
|
Single Phase AC220V,50HZ,2KVA
|
|
Intersection Point Deviation (mm)
|
≤0.5 (800 × 800 Industry Standard Prescribed Figure Lineation)
|
|
Diagonal Error (mm)
|
≤0.5 (300 × 300 Square Lineation)
|
Besides CNC plasma cutter, we also provide CNC flame cutting machine, CNC plasma cutting machine, CNC fine plasma cutting machine, H-beam production line, box-beam production line, welding machine and wind tower equipment. Our CNC underwater plasma cutting machines have been exported to the United States, Canada, Russia, Italy, Australia, New Zealand, Japan, India, Singapore, Malaysia, Indonesia, Iran, UAE and Brazil.
