Features
1.The boom and column employ welding structure, and are annealed after welding.
2.This welding equipment is characterized by light weight, high intensity, little deformation, reasonable structure and long service life.
3.All the arc-tracing motion is realized automatically with flexible unit.
4.Travel motor is controlled by inverter, with speed displayed in digital panel meter. The welding equipment and gantry travel adopts integral control.
5.This gas shield welding machine adopts pneumatic tracking device for accurate positioning of the welding nozzle with respect to welding seam, ensuring the welding quality.
6.The control panel is fit inside column, for good appearance and compact structure. This welding equipment also has operating panel on the welding arm for easy operation.
7.CO₂welding machine is the crucial unit of the welding equipment, including welding power, wire feeder, water-cooling tank, water-cooling welding gun and console.
Description

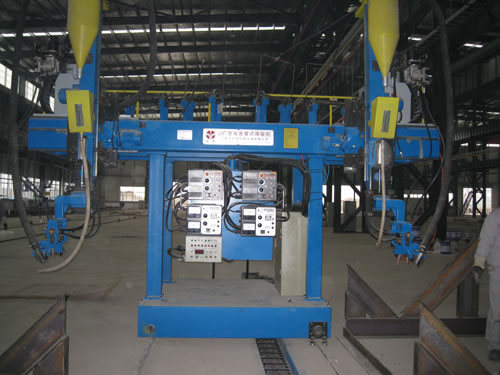

This welding equipment is used for tandem-twin CO₂back welding of assembled box-beam. With fast speed and high efficiency, this gas shield welding machine can reduce the man-made influence. The work-piece is sent to working position after being assembled. With welding nozzle, the welding arm can move horizontally and vertically through carriage and trolley, making the nozzle aim at welding seam.
There is pneumatic flexible mechanical arc-tracing device on the welding arm. The trolley moves along rail, carrying out automatic back welding of flat seam on groove of box column. The welding equipment is composed of travel trolley, column, beam, welding arm, mechanical arc-tracing mechanism, electrical system and CO₂welding machine. Its main elements adopt international famous brands.
Parameters of Tandem Twin Gas Shield Welding Machine
|
Model
|
XQ12
|
XQ15
|
|
Suitable Work-Piece Sizes (mm)
|
300-1200
|
300-1500
|
|
Suitable Work-Piece Length (mm)
|
4000-15000
|
|
Welding Speed (mm)
|
0.24-2.4
|
|
Fast Return Speed (mm)
|
3
|
Packaging and Transportation
1.The main engine of this welding equipment can be packed in nude, while its electric cabinet uses plywood case.
2.This gas shield welding machine can be delivered by truck and by sea.
Our welding equipment has been exported to foreign coutries like the United States, Canada, Russia, Italy, Australia, New Zealand, Japan, India, Singapore, Malaysia, Indonesia, Iran, UAE and Brazil. The welding laboratory and physicochemical testing room are built for development of new welding equipment. We adopt international advanced management mode and operate according to the ISO9000 quality system. Our production processes and gas shield welding machines meet environmental requirements. We accomplish scientific and standard management to ensure the quality of welding equipment.
