Features
1.This CNC flame cutting machine can be equipped with numerical control flame cutting and vertical strip torch cutting functions. The cutting thickness is not limited to thick plate, medium and thin plates are also available.
2.This CNC strip cutting machinery is suitable for cutting mild steel and aluminum sheet
3.The CNC flame cutting machine adopts dust-proof cover outside and flexible heat protection jacket at the extrude part of lifter, which can prevent the heat distortion of transmission parts and avoid blocking phenomenon.
4.Our CNC strip cutting machinery has quick return function with 6000mm/min.
5.Both driving and driven end beams are configured with scrape removing plate, which can remove the powder dust and sundries on the rail.
6.This CNC flame cutting machine employs Schneider’s servo drive system and uses SIEMENS or ABB’s electrical elements.
Description

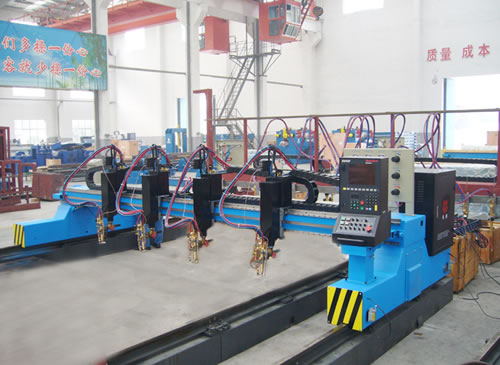

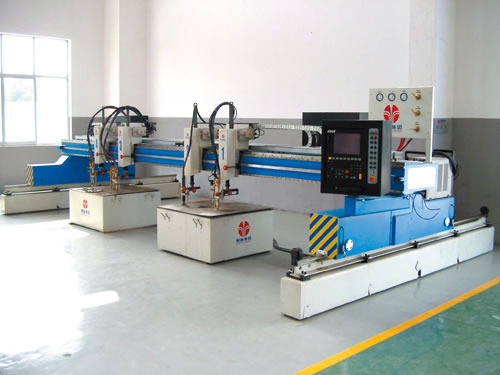

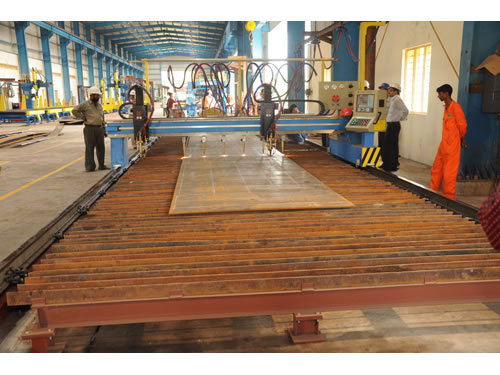

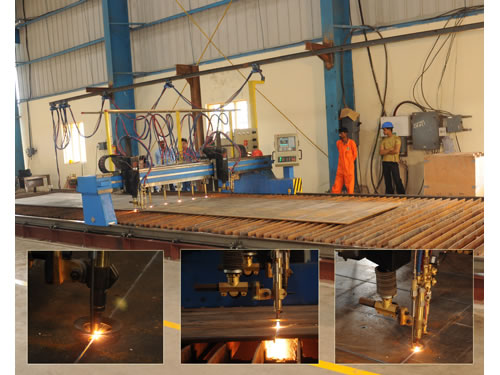

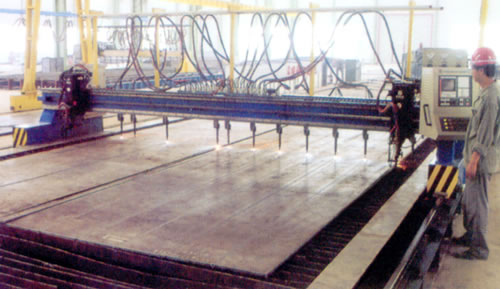

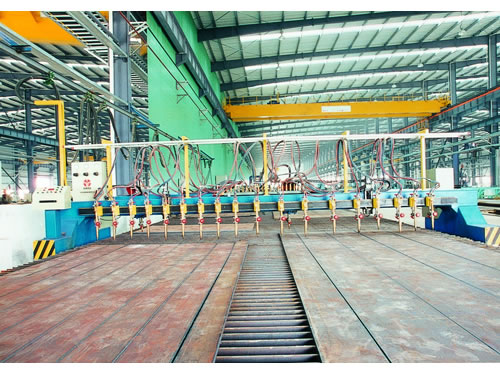

This CNC flame cutting machine not only can be used for strip cutting in batch but also for shape cutting. The whole machine adopts welding structure and double shaft cores rails. This multi-head vertical strip flame cutting machine features in stable structure, easy operation and high transmission precision.
This CNC strip cutting machinery also has made great improvement in the process technology and appearance. Our CNC flame cutting machine provides various numerical control systems for customer selection. All the performance indexes accord with or exceed mechanical industry standard.
Parameters
|
Model
|
QSH30-40
|
QSH30-100II
|
|
Drive Way
|
Single Side Drive, Use 24kg/m rail
|
Double Side Drive, Use 38kg/m heavy rail
|
|
Rail Span (m)
|
3-4
|
3-10
|
|
Valid Working Width (m)
|
2.2-3.2
|
2.2-9.2
|
|
Strip Cutting Width (mm)
|
80-3200
|
80-9200
|
|
Torch Lift Stroke (mm)
|
170
|
|
Flame Cutting Speed (mm/min)
|
50-1000 (Setting as per Cutting Technology)
|
|
Fast Return Speed (mm/min)
|
6000
|
|
Flame Cutting Thickness (mm)
|
6-100 (Single Torch), Piercing Thickness≤80
|
|
Flame Cutting Material
|
MS
|
|
Input Power of Flame Cutting Machine
|
Single Phase AC220V,50HZ,2KVA
|
|
Intersection Point Deviation (mm)
|
≤0.5 (800 × 800 Industry Standard Prescribed Figure Lineation)
|
|
Diagonal Error (mm)
|
≤0.5 (300 × 300 Square Lineation)
|
Attention
The effective cutting length, effective cutting width and plate thickness must be provided when choosing this CNC flame cutting machine. The users also should tell the numbers of the CNC cutting torch and strip cutting torch. They should decide numerical control system to select Chinese brand or International famous brand.
Payment
1.Contract comes into effect, 30% down payment paid by T/T, 70% balance payment paid by T/T before delivery.
2.Please open 100% irrevocable letter of credit at sight immediately when the contract becomes effective.
As a professional CNC flame cutting machine manufacturer and CNC strip cutting machinery supplier in China, we provide H-beam production line , CNC plasma cutting machine, >welding manipulator,welding turning roller, welding positioner and welding wind tower production line. Our company adopts the international advanced management mode and operates according to the ISO9000 quality system. Our multi-head vertical strip flame cutting machine has received ISO9000 certificate of quality system and CE certificate.
