Features
1.The maximum cross section of this milling machine is 1200×1500mm.
2.The degree of milling head can be adjusted manually in vertical direction to bevel the end face. Its milling angle is from 0 to 45°
3.This end face milling machine adopts hydraulic support rack, which can fix the beam and hoist easily.
4.The welding structural parts are treated by tempering after welding. Therefore, they can be used for a long time without deformation.
5.This face milling machine has many advantages of easy operation, high intensity, little deformation, reasonable structure and rapid adjustment.
6.Guide rail adopts flexible telescopiform protective device, featuring in good sealing and long life.
Description

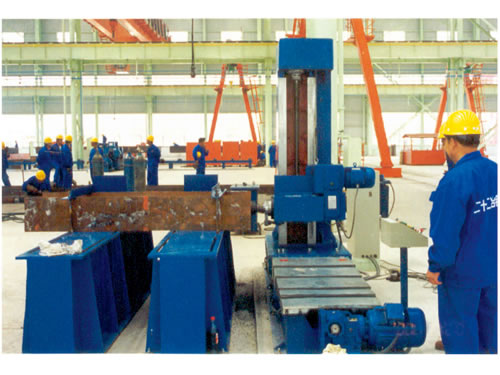

The end face milling machine mainly consists of facer, elevation column, worktable, lathe bed, mechanical feeding unit, electric control system, rail-guard unit and milling tools. This milling machine is used to mill the end face of H-beam and box-beam. It is the requisite equipment of steel structure production line manufacturer.
Parameters of End Face Milling Machine
|
Model
|
DX1215
|
DX1520
|
|
Milling Height of Work-Piece (mm)
|
1200
|
1500
|
|
Milling Width of Work-Piece (mm)
|
1500
|
2000
|
|
Milling Head Power (kw)
|
5.5
|
|
Vertical Milling Speed (mm/min)
|
55-500
|
|
Horizontal Milling Speed (mm/min)
|
50-440
|
|
Milling Angle
|
0-45°
|
Packaging and Transportation
1.The main engine of this end face milling machine can be packed in nude, its electric cabinet and welding power packed in plywood case.
2. It can be transported by motor carriers and by sea.
Lanteky Mechanical Equipment is a professional manufacturer and supplier of milling machine in China. Our box-beam production line products include box-beam assembling machine, beam assembly line, gas shield welding machine, cantilever welding machine, end face milling machine and automatic welding machine. Our welding production line has obtained ISO9000 certificate and CE certificate.
